Solar PV Size
10.8 kWp
Recent Bespoke PV installation
Commercial Solar PV Installation in Small Dole
Completed November 2025
A commercial solar PV installation delivered as part of a full building refurbishment in Small Dole, using a non-penetrating flat roof mounting system to protect the new roof covering.
10.8 kWp Solar PV
24 Trina 450W solar panels, Fox ESS T15 15kW 3 Phase Inverter, Fastensol Flat Roof Tray mounting system
Small Dole, West Sussex Installation
Installation Specification
Key details from this Bespoke PV installation.
Equipment
24 Trina 450W solar panels, Fox ESS T15 15kW 3 Phase Inverter, Fastensol Flat Roof Tray mounting system
Location
Small Dole, West Sussex
Project Overview
This project formed part of a complete commercial building refurbishment in Small Dole, with solar PV specified as part of the wider upgrade works.
The customer wanted to incorporate solar generation into the refurbishment so the building could benefit from lower grid reliance and a long-term renewable energy solution.
Bespoke PV supplied and installed a 10.8 kWp solar PV system using 24 Trina 450W solar panels. The system was paired with a Fox ESS T15 15kW 3 Phase Inverter, installed in the main electrical distribution room to provide a practical and commercially appropriate system layout.
The finished installation was designed to integrate cleanly with the refurbished building while preserving the integrity of the new flat roof covering.
The Challenge
Because the property was undergoing a full refurbishment, the solar PV installation needed to work around both the building programme and the finished roof construction.
A key requirement was to avoid penetrating the new flat roof covering. The mounting solution therefore had to provide a secure installation while protecting the roof’s weatherproofing and reducing the risk of future maintenance issues.
System at a Glance
Key project details for the Small Dole commercial installation.
10.8 kWp
Solar PV system size
24
Trina 450W panels
15 kW
Fox ESS T15 3 phase inverter
3 Phase
Commercial electrical connection
0
Roof penetrations required

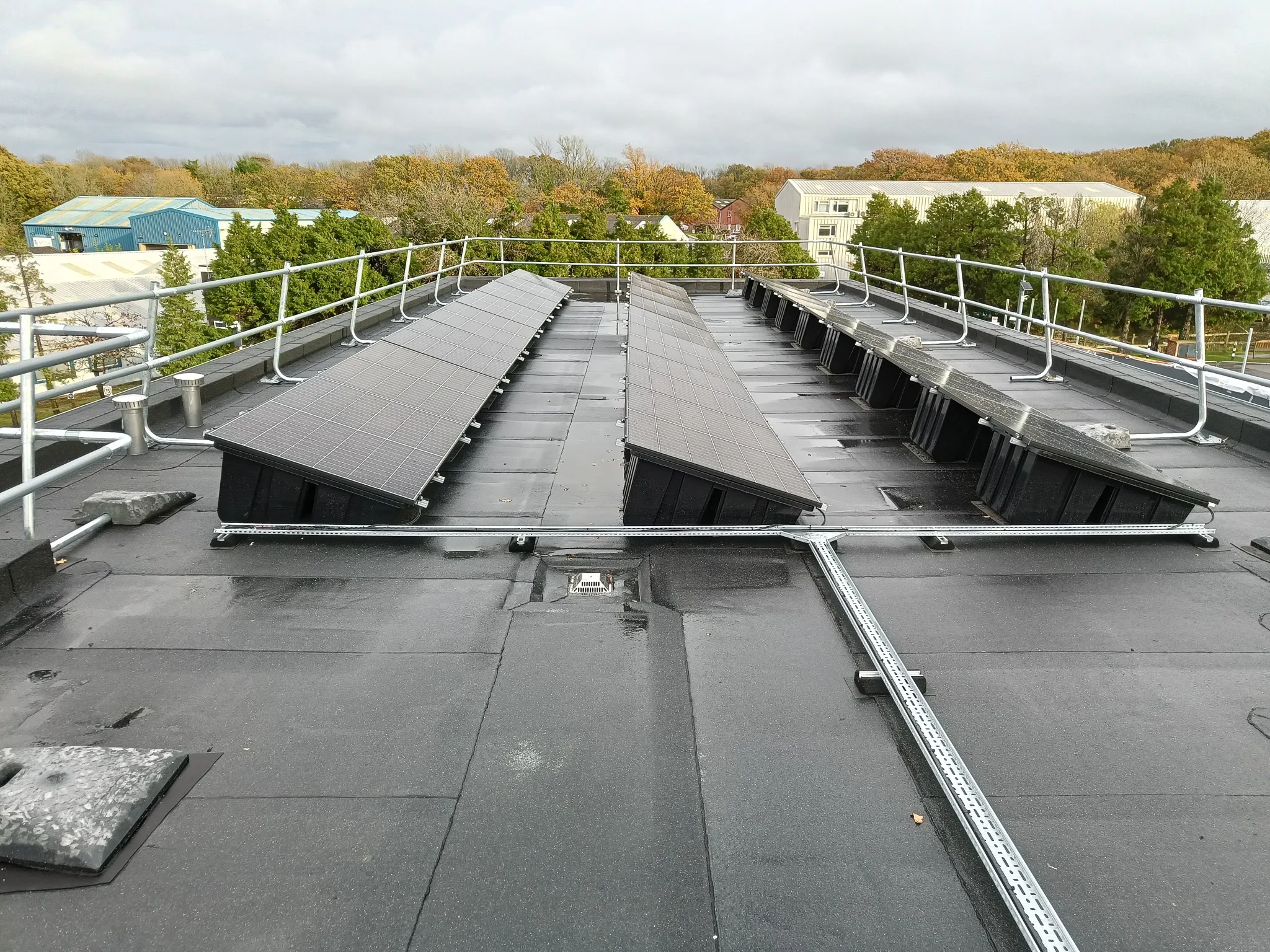

Flat Roof Mounting Without Roof Penetrations
The mounting system was selected specifically to protect the newly finished flat roof.
Bespoke PV used the Fastensol Flat Roof Tray mounting system for this installation. This approach allowed the solar array to be installed securely without penetrating the new roof covering.
That was particularly important on this project, as the customer had recently invested in a full refurbishment and needed the solar installation to complement the new roof rather than interfere with it.
The result was a practical flat roof solar solution that balanced structural suitability, installation quality and long-term roof protection.
Equipment Installed
The system was built around proven commercial solar equipment suited to the building and its electrical infrastructure.
Trina 450W solar panels
24 high-output panels forming the 10.8 kWp commercial solar array.
Fox ESS T15 15kW 3 Phase Inverter
A commercial 3 phase inverter installed in the main electrical distribution room.
Fastensol Flat Roof Tray
A non-penetrating flat roof mounting system selected to protect the new roof covering.
Commercial flat roof installation
Designed around the refurbished building and its roof layout.
Main distribution room connection
Inverter location chosen for practical access, commissioning and future servicing.
Refurbishment-ready solar PV
Installed as part of the wider commercial building upgrade.

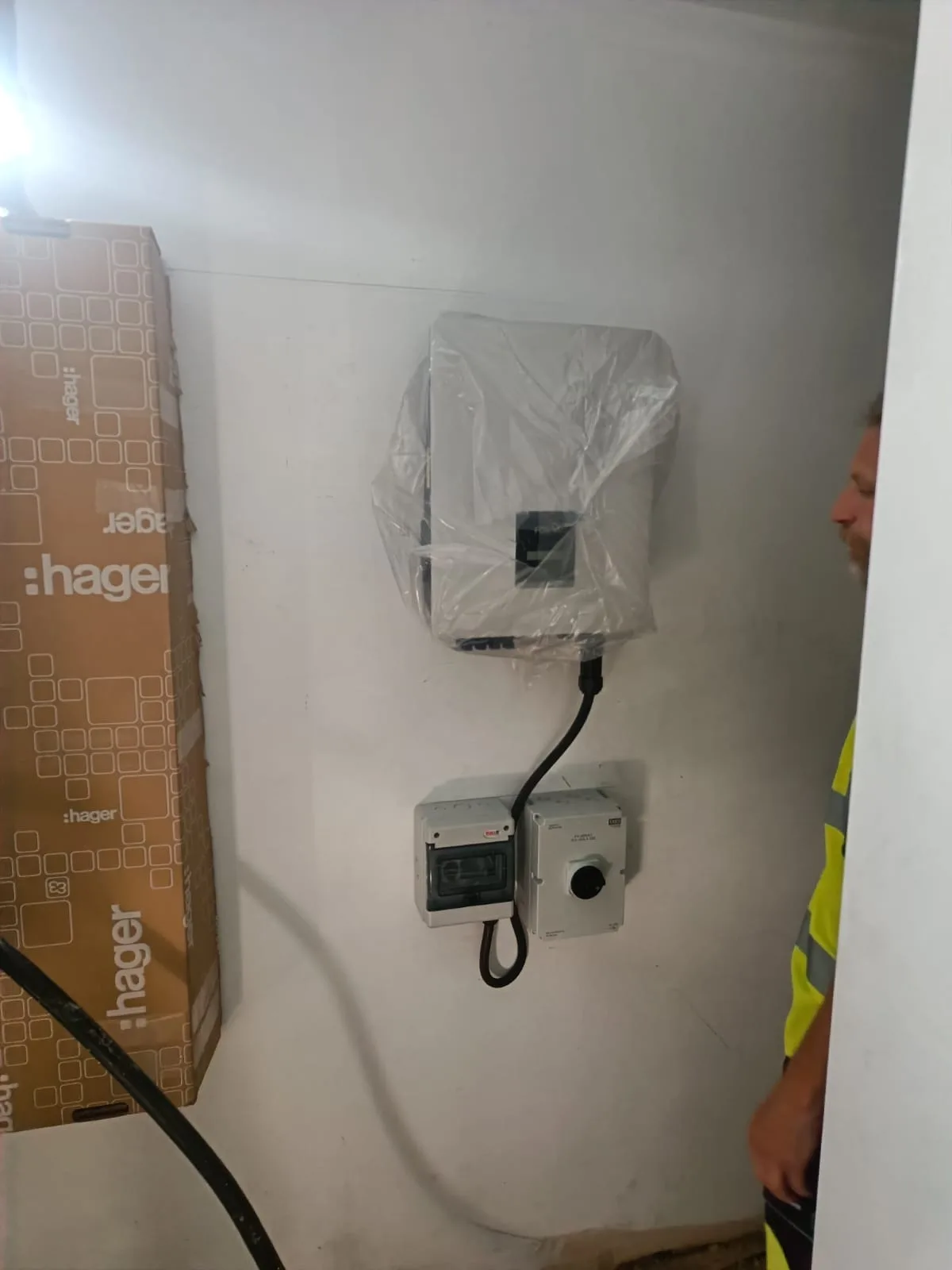

Inverter Installation in the Main Electrical Distribution Room
The inverter was positioned in the building’s main electrical distribution room for a neat, accessible and commercially appropriate installation.

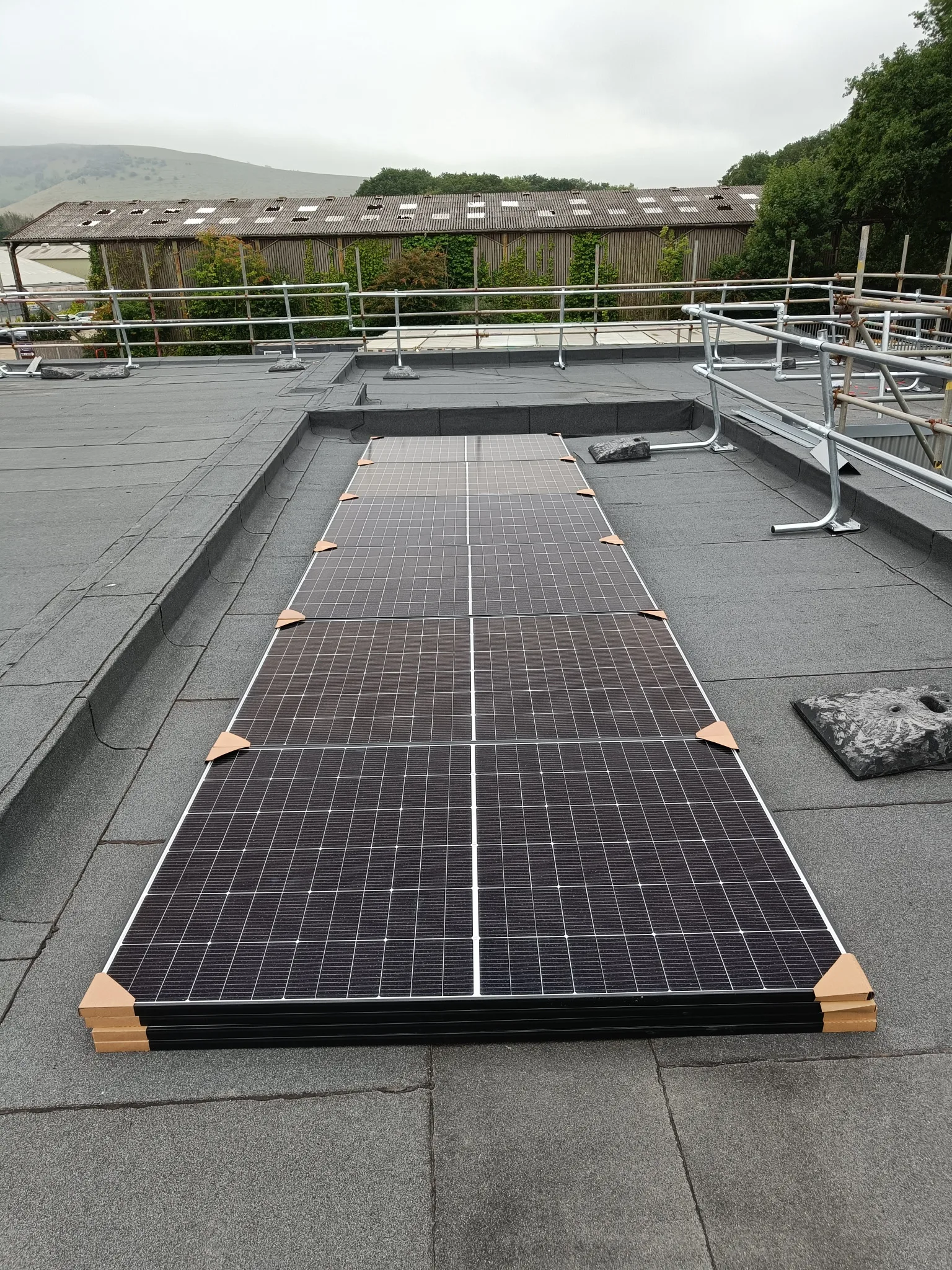

Project Gallery
Images from the Small Dole commercial solar installation.
The Result
The completed installation provides the building with a 10.8 kWp solar PV system designed to support ongoing electricity demand and reduce reliance on imported grid electricity.
By using a non-penetrating flat roof mounting system, Bespoke PV was able to deliver the solar installation while protecting the newly refurbished roof. The Fox ESS 3 phase inverter installation in the main electrical distribution room also helped ensure a tidy, functional and commercially appropriate final system layout.
